SUNPUMPS SOLAR WELL PUMP KIT
SDS series pumps are low cost, high efficiency, positive
displacement submersibles designed to be an economical
solution for the solar water pumping industry. Constructed of
Super Strong Ryton and stainless steel, these pumps are
extremely durable and corrosion resistant. The same pumps
can be special ordered with 316 Stainless Steel housings
and hardware for highly corrosive water. The pump operates
on 12 to 30 volts DC that may be supplied from a variety of
independent sources including solar panels or batteries. It is
the ideal way to provide water for remote homes, campsites,
livestock, small farms or for many other needs beyond the
power grid. The kit includes the pump, controller,
submersible wire and a 235W solar panel. Pump Types:
Pump        Max Flow Rate        Max Lift        Required Casing
Diameter
T-128         2.25 GPM         230 Feet        4"
T-130         2.56 GPM         100 Feet        4"
T-135         3.15 GPM         80 Feet          4"
Q-128        3.9 GPM          100 Feet         5"
Q-130        4.4 GPM          100 Feet         5"
Q-135        5.1 GPM          80 Feet           5"
SDS-D-228 Submersible Pump

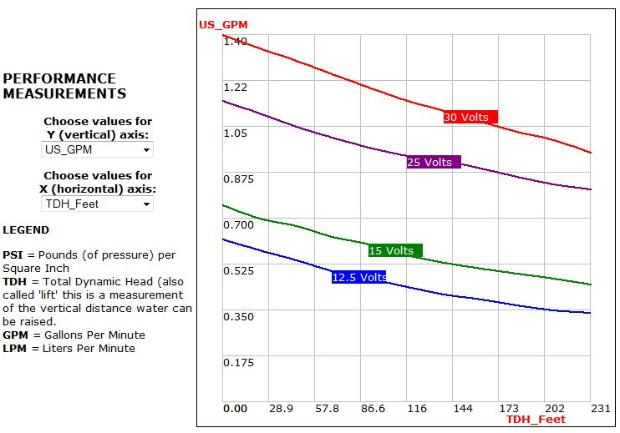

Maximum Flow: 1.40 gallons per minute at 0 feet

Maximum Lift: 0.95 gallons per minute at 231 feet

(when powered at the maxiumum of 30.00 volts)

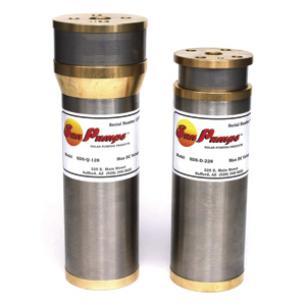

SDS-D-228 Submersible Pump

SunPumps SDS-D series submersible pumps are one of the most highest quality, low votage
DC pumps on the market. They were the first diaphragm submersible introduced to the solar
industry in 1988 and have an excellent performance record.

The SDS series pumps are easy to install by hand without any special equipment. The pump
includes a double shrink splice kit and a 1/2" brass discharge fitting.

Note:

The SDS-D-228 pump now uses a HD santoprene diapgragm instead of the EPDM fabric
reinforced diaphragm. It is much more chemical and abrasion resistant.

Part #85204

Shipping Weight 15 Lbs.
SDS-D-228 Submersible Pump
$ 899.00
SDS-D-128 Submersible Pump

SunPumps SDS-D series submersible pumps are one of the most highest quality, low votage DC
pumps on the market. They were the first diaphragm submersible introduced to the solar industry in
1988 and have an excellent performance record.

The SDS series pumps are easy to install by hand without any special equipment. The pump
includes a double shrink splice kit and a 1/2" brass discharge fitting.

Note:

The depth capabilities of the SDS-D-128 has been expanded from 115 feet to 230 feet starting in
June 2005. It now has the same depth rating as our SDS-D-228 but with a higher flow rate.

Part #85200

Shipping Weight 15 Lbs.
SDS-D-128 Submersible Pump
Maximum Flow: 1.75 gallons per minute at 0 feet

Maximum Lift: 1.25 gallons per minute at 231 feet

(when powered at the maxiumum of 30.00 volts)
Free Shipping
SDS-D-128 Submersible Pump
$ 899.00
Copyright 2018,  Off Grid USA, All rights reserved.
San Antonio Texas
Telfax: 210-460-3514
All rights reserved.
Web Hosting by Yahoo!
Sun Pumps solar kits
SunPumps Water Pumping Solar Kit 65W
List Price:   $999.00
Free Shipping
SunPumps Water Pumping Solar Kit 90W
List Price:   $1,049.00
Free Shipping
SunPumps Water Pumping Solar Kit 140W
List Price:   $1,099.00
Free Shipping
SunPumps Water Pumping Solar Kit 160W
List Price:   $1,199.00
Free Shipping
SunPumps Water Pumping Solar Kit 220W
List Price:   $1,299.00
Free Shipping
Use this guide to select the best pump kit that fit in your well according to the well TDH (Total dynamic Head)
please let us know which pump you want in your package, use the guide first column to select it.
