DUSK TO DAWN SECURITY LED FIXTURE - 6099 LM, 85-277 VAC, PURE WHITE (5500K), WIDE BEAM.,
ARM MOUNT, PHOTOCELL, GREENSTAR
Applications:
Applications:The DS Series Luminaire is designed as a direct upgrade
replacement for traditional dusk-to-dawn security light units. The
Luminaire offers easy mounting and compatibility to standard ANSI
refractor/reflector assemblies. The rugged, corrosion-resistant,
die-cast aluminum housing is outfitted with stainless steel hardware
and an epoxy coating that offers an extremely long service life and
excellent weather resistance. The DS offers multiple light distribution
options to improve the visual experience for your specific application.
While not commonly available on traditional HID or competing LED
products, the DS offers a full line of roadway distribution patterns.
Was $155.00
Now Sale
$135.00
Free Shipping
Copyright 2018,  Off Grid USA, All rights reserved.
San Antonio Texas
Tel: 210-460-3514
All rights reserved.
Web Hosting by Yahoo!
GreenStar Products, Inc. is a world-class manufacturer of LED-based Luminaires headquartered in San Antonio, TX. GreenStar manufactures its Luminaires to exacting
industry standards and is widely recognized as a top tier manufacturer in the LED market. All products incorporate components from recognized and certified industry
component suppliers. GreenStar’s commitment to superior thermal management results in top-grade lighting products built to withstand a lifetime of use in any climate
while providing outstanding light delivery. In addition to product performance, GreenStar is equally proud of its customer service commitment, which includes best in
class lead times as well as technical service both before and after-the-sale. GreenStar stands behind each and every unit that leaves our facility and you can be certain
that with GreenStar, you are purchasing one of the best lighting products available in the market today.
SECURITY LED
LUMINAIRES
MUNICIPAL ROADWAY LED
LUMINAIRES
ROADWAY AND AREA LED
LUMINAIRES
POST TOP LED LUMINAIRES
FLOODLIGHT LED
LUMINAIRES
WALL PACK LED
LUMINAIRES
6099 Lumens
Description:
This unit replaces 100 watt, 150 watt, 175 watt incandescent lighting (HID,
high-pressure sodium, metal-halide, etc.), using only 55 watts maximum,
saving significant electrical costs.

Excellent for parking lots, entryways, driveways, office buildings,
warehouse exteriors, storage buildings, etc. Powerful, extra-bright LEDs
deliver bright, even lighting in outdoor applications. LEDs rated at 100,000
hours (18 years at average use), reducing bulb replacement costs by up
to 10 times. LED lighting provides instant-on illumination versus standard
HID bulbs which require a warm-up period. Advanced heat dissipation
technologies for long-term reliability.

High-quality Texas Instruments driver components. Unlike standard
outdoor lighting which attract bugs, LED light is invisible to most bugs,
reducing "bug swarming" around light.
Construction:
Heavy-duty cast aluminum housing and corrosion-resistant hardware provides strength of construction and longevity in application. Powder-
coated finish and IP65 construction provides durable resistance to the outdoor environment. Lightning and surge protection, MOVs and Arc
Tubes.

On-Board Lighting Controls:
Includes replaceable high-quality Lumatrol photocontrol for dusk to dawn on operation.

Optics:
Precision-molded, high-impact, optical-grade PMMA lens providing uniform Type V wide oval distribution. Keyed lens assembly ensures
consistent optical performance across a broad range of available outputs. Lens resists impact damage.

Dark Sky certified, full cut-off reduces light pollution. Fixture and lens design provides more focused, even lighting with better color rendition.

Color temperature is 5,500K (natural white).

Electrical:
High-efficiency 5,700K, 70CRI LEDs are mounted to a metal core printed circuit board (COB) which is installed onto the finned LED heat sink to
maximize thermal management and provide long operating life for the LEDs (rated life 100,000 hrs, 40°C ambient L85** based on 9,000 hours
of LED testing per LM-80-08. LED life based on projected values per IESNA TM21-11). Variable voltage input drivers (120-277v; 50/60 Hz)
have a high power factor >95% and low THD <10%. Built-in surge protection ensures reliable operation. LED driver design provides long life of
electrical components by providing thermal separation of electrical components from LED heat sink.

Mounting:
Mounts to standard 1.5” O.D. round pole arm (available at most home improvement stores). Listings – DLC, cULus, ETL, ISO, CE, RoHS, IDA
Dark Sky. IP65 rated. Suitable for ambient temperatures from -40° to 40°C.

Warranty:
5-year limited warranty. Consult manufacturer for additional terms and conditions. Fully tested and certified.

Call us for a quote on large commercial projects and quantity pricing.

Specifications:
Electrical Distribution:
Input Line Voltage: 120-277 VAC standard (V1)
Frequency Range: 50/60 Hz
Power Draw: 55 Watt Max
Power Factor (PF): >0.95
Surge/Spike Protection: 10 KV, MOVs and Arc Tubes
Total Harmonic Distortion (THD): <10%
Forward Current: 700 mA

Optical:
Light Source: High-quality LumiLEDs, 100,000 hour life
Correlated Color Temperature (Kelvin): 5,500K (pure white)
Custom Design Lens Source: Ledil
Delivered Light Efficiency: >90%
Beam Pattern: Wide Oval (Type V Standard)
Light Delivering Rating: Cutoff (Dark Sky certified)

Operating Environment:
Operating Temperature: -40F to 110F, -40C to +40C
Certifications: ETL (to UL standards), CE, RoHS, NOM, FIDE, meets IP65, IESNA, Dark Sky

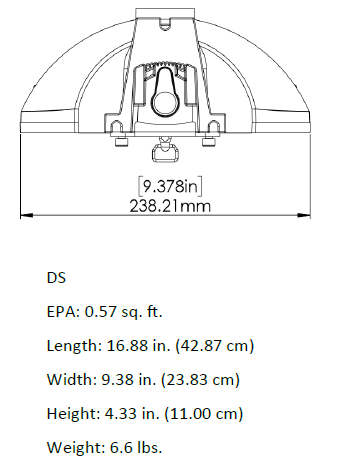

Mechanical:

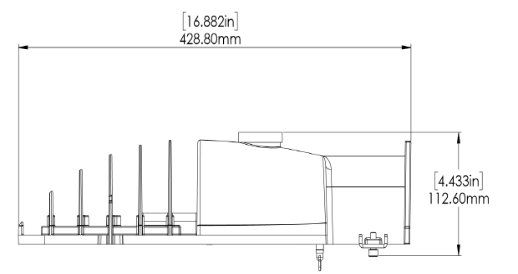

Dimensions: 16.9" L x 9.4" W x 4.5" H
Weight: 7.5 lbs.
Box Weight: 8.1 lbs.
Box Dimensions: 17" x 9.3" x 4.3
Casing Material: Aluminum alloy
LED Lens: Tempered Glass
Mounting: 1.5" round arm and wall mount
Color:  Grey powder-coated aluminum
